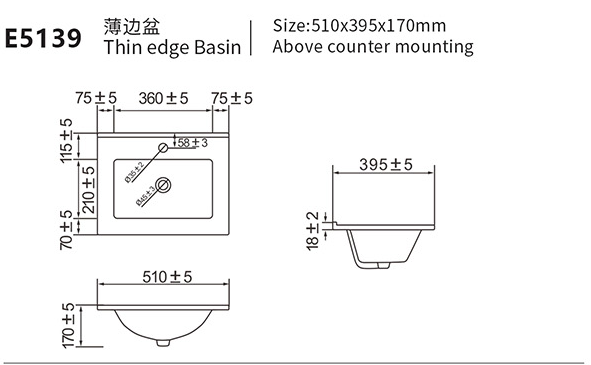

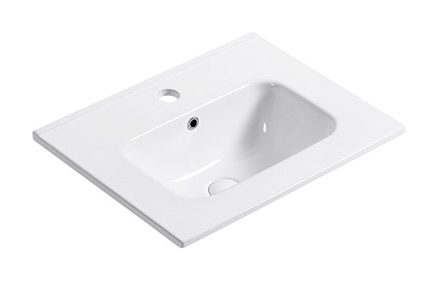

Product image and drawing from catalogue page 4.
SINGLE BASIN · CERAMIC
E5139 Ceramic
Vanity Top
510 × 395 × 170 mm
E5139 is a ceramic integrated sink with one integrated bowl. Its catalogue dimensions are 510 mm wide, 395 mm deep and 170 mm high. Compare the bowl and waste positions with the cabinet drawing before ordering.
- Model
- E5139
- Material
- Ceramic
- Layout
- Single Basin
- Mounting
- Above counter mounting
Send your cabinet drawing and quantity so we can confirm the specification.
MODEL DIMENSIONS
Technical Specifications
| Model | E5139 |
|---|---|
| Overall width | 510 mm |
| Overall depth | 395 mm |
| Overall height | 170 mm |
| Material | Ceramic |
| Basin layout | Single Basin |
| Catalogue mounting description | Above counter mounting |
| Source | Integral sink catalogue, page 4 |
Use the original drawing for the dimension positions and printed tolerances. Confirm the final drawing before making the cabinet.
BEFORE ORDERING
Confirm the Cabinet and Order Details
Cabinet fit
Compare the top footprint, bowl depth and waste position with the cabinet and drawer drawings. Confirm the support arrangement with the supplier.
Finish approval
Use a physical sample to agree the color and surface finish. A white product photograph does not represent every optional glaze.
Brand and packing
Send logo artwork and packaging requirements. Selected length changes need separate confirmation; the listed model dimensions remain the catalogue dimensions.
Other Models to Compare
All Products →
TALK TO CADIA
Discuss This Model with CADIA
Send the model, cabinet drawing, requested finish and order quantity. We’ll help confirm the specification.
