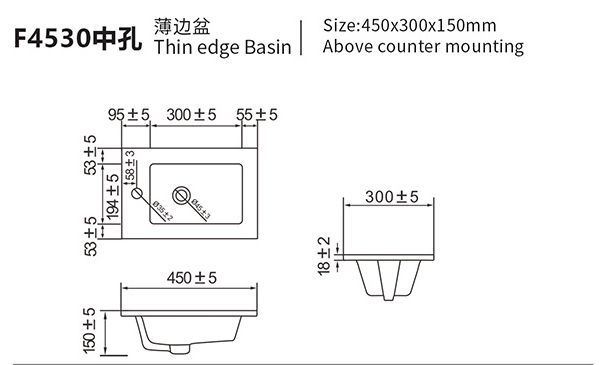

Product image and drawing from catalogue page 21.
SINGLE BASIN · CERAMIC
F4530 Centre Tap Hole Ceramic
Vanity Top
450 × 300 × 150 mm
F4530 Centre Tap Hole is a ceramic integrated sink with one integrated bowl. Its catalogue dimensions are 450 mm wide, 300 mm deep and 150 mm high. The catalogue identifies a centre tap-hole version; check the original drawing before specifying the tap. Compare the bowl and waste positions with the cabinet drawing before ordering.
- Model
- F4530 Centre Tap Hole
- Material
- Ceramic
- Layout
- Single Basin
- Mounting
- Above counter mounting
Send your cabinet drawing and quantity so we can confirm the specification.
MODEL DIMENSIONS
Technical Specifications
| Model | F4530 Centre Tap Hole |
|---|---|
| Overall width | 450 mm |
| Overall depth | 300 mm |
| Overall height | 150 mm |
| Material | Ceramic |
| Basin layout | Single Basin |
| Catalogue mounting description | Above counter mounting |
| Source | Integral sink catalogue, page 21 |
Use the original drawing for the dimension positions and printed tolerances. Confirm the final drawing before making the cabinet.
BEFORE ORDERING
Confirm the Cabinet and Order Details
Cabinet fit
Compare the top footprint, bowl depth and waste position with the cabinet and drawer drawings. Confirm the support arrangement with the supplier.
Finish approval
Use a physical sample to agree the color and surface finish. A white product photograph does not represent every optional glaze.
Brand and packing
Send logo artwork and packaging requirements. Selected length changes need separate confirmation; the listed model dimensions remain the catalogue dimensions.
