SINGLE BASIN · CERAMIC
F4626 Ceramic
Vanity Top
460 × 260 × 100 mm
F4626 is a ceramic integrated sink with one integrated bowl. Its catalogue dimensions are 460 mm wide, 260 mm deep and 100 mm high. Compare the bowl and waste positions with the cabinet drawing before ordering.
- Model
- F4626
- Material
- Ceramic
- Layout
- Single Basin
- Mounting
- Above counter mounting
Send your cabinet drawing and quantity so we can confirm the specification.

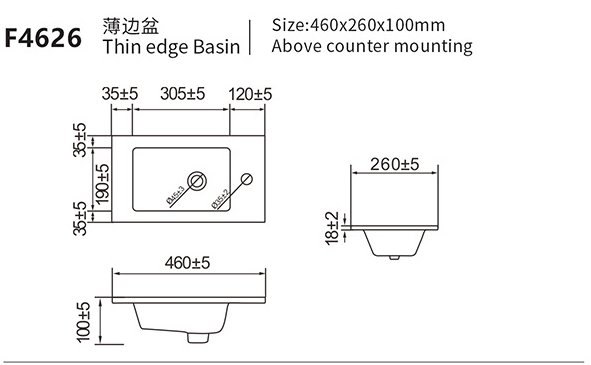

MODEL DIMENSIONS
Technical Specifications
| Model | F4626 |
|---|---|
| Overall width | 460 mm |
| Overall depth | 260 mm |
| Overall height | 100 mm |
| Material | Ceramic |
| Basin layout | Single Basin |
| Catalogue mounting description | Above counter mounting |
| Source | Integral sink catalogue, page 21 |
Use the original drawing for the dimension positions and printed tolerances. Confirm the final drawing before making the cabinet.
BEFORE ORDERING
Confirm the Cabinet and Order Details
Cabinet fit
Compare the top footprint, bowl depth and waste position with the cabinet and drawer drawings. Confirm the support arrangement with the supplier.
Finish approval
Use a physical sample to agree the color and surface finish. A white product photograph does not represent every optional glaze.
Brand and packing
Send logo artwork and packaging requirements. Selected length changes need separate confirmation; the listed model dimensions remain the catalogue dimensions.
